Cabin Temperature Sensor / Switch: Service and Repair
REPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Remove the center console
3.

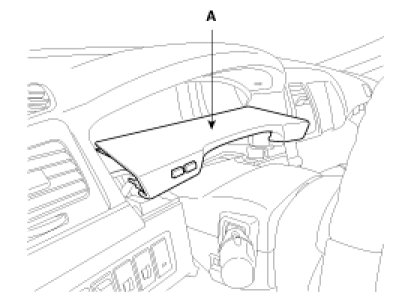

Remove the cluster garnish (A)
4.

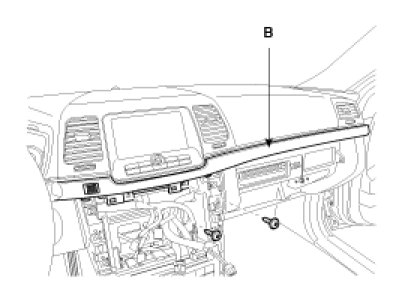

After loosening the screw, then remove the crash pad center garnish (B).
5.
Remove the IN-car sensor (A).
6.
Installation is the reverse of removal.
