Repair Procedures
REPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.
Remove the center console.
3.

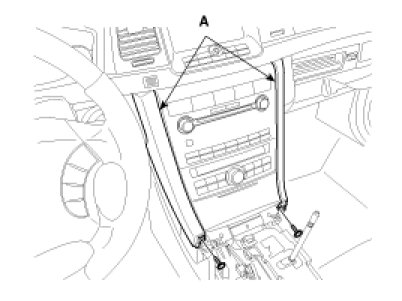

Remove the crash pad center lower garnish (A).
4.

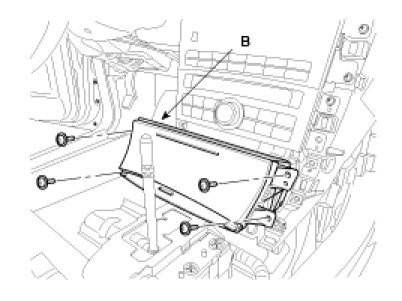

Remove the center facia tray (B) after loosening 4 screws.
5.

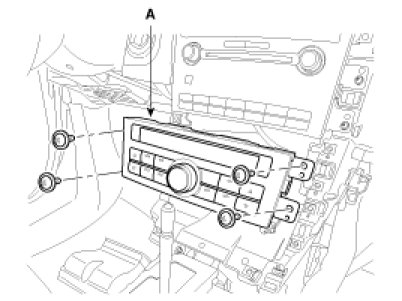

Remove the Heater & A/C controller (A) after loosening 4 screws.
6.

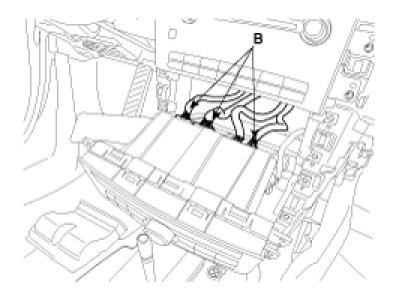

Disconnect the connector(B), and then remove the A/C controller.
7.
Installation is the reverse order of removal.
