Drive Belt: Service and Repair
Drive BeltReplacement 1.

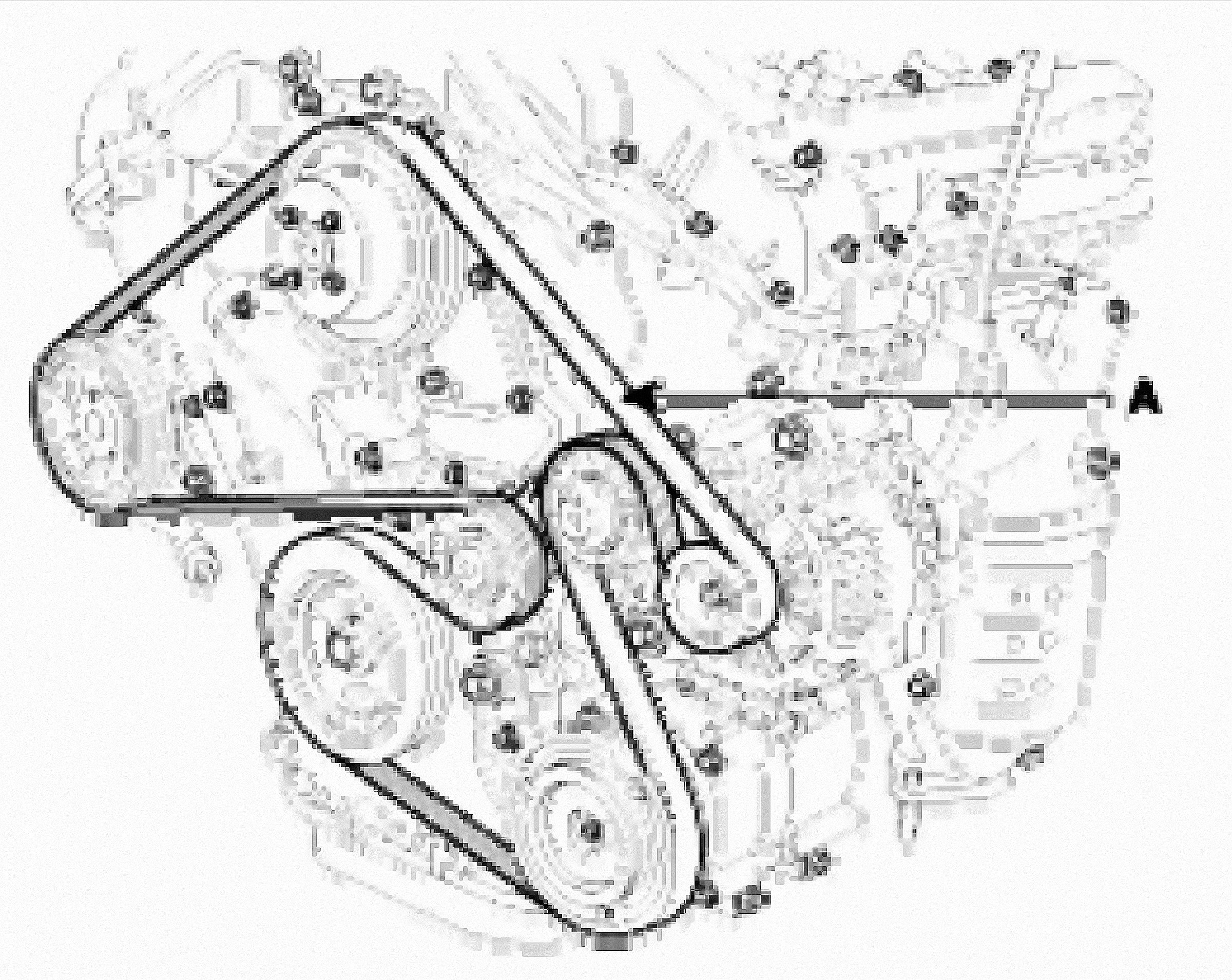

Install the
drive belt (A) in the following order:
Crankshaft pulley - A/C pulley - idler pulley - alternator pulley - water pump pulley - P/S pump pulley - tensioner pulley.
2.
Rotate auto tensioner arm in the counterclockwise moving auto tensioner pulley bolt with wrench.
3.
After putting belt on auto tensioner pulley, release the auto tensioner pulley slowly.
