DISASSEMBLY

1. If the front bearing needs replacing, remove the pulley with a hexagonal wrench.

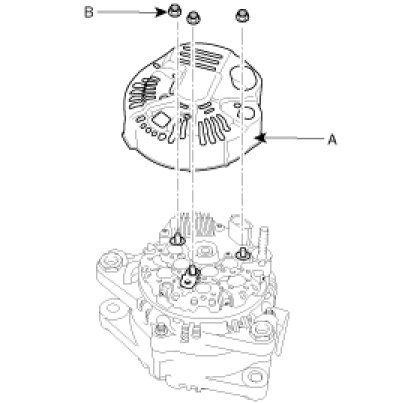

2. Remove the generator cover(A) after removing the three nuts(B).

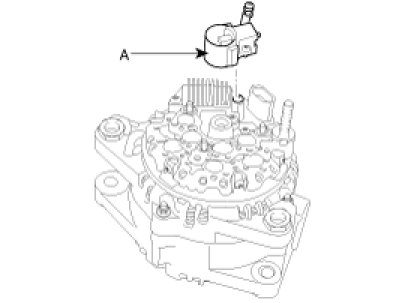

3. Remove the brush holder(A).

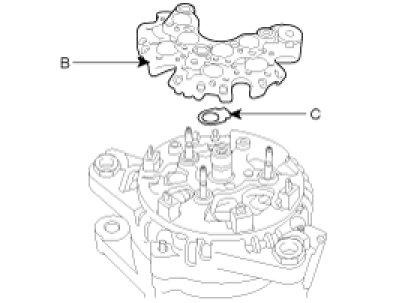

4. Remove the four screws, the rectifier(B) and the rubber seal(C).

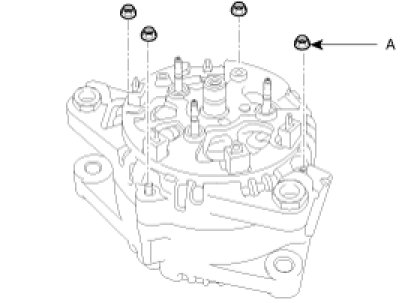

5. Remove the four nuts(A) and insulators(B).

6. Remove the rear bracket assembly(A) and washer(B).

7. Remove the rotor(A) from the stator and front frame assembly(B).
