Reassembly

REASSEMBLY


NOTE:
Be careful not to get any grease or oil on the slip rings.

1. Insert the rotor(A) in the stator and front frame assembly(B).




2. Install the washer(B) and the rear bracket assembly(A)




3. Tighten the four nuts and insulators(B).








4. Install the rectifier(B) and the rubber seal(C) by tightening the four screws(A),




5. Install the brush holder(A).




6. Install the generator cover(A) by tightening the three nuts(B).

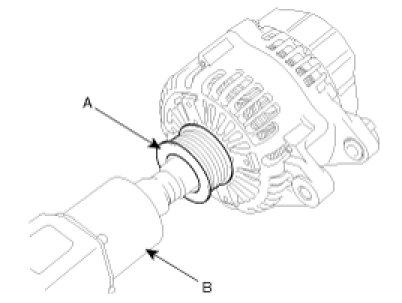

7. Install the pulley with a hexagonal wrench.
