Windshield Washer Motor: Testing and Inspection
Inspection 1.
With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
2.

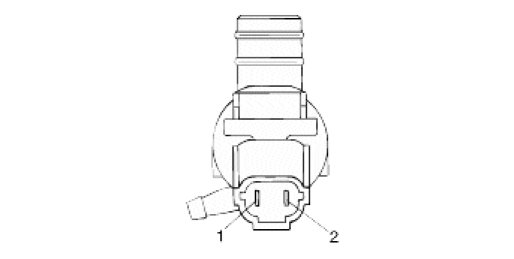

Apply the battery voltage to the terminal 2 and ground the terminal 1 to see that the washer motor runs and water sprays from the nozzles.
3.
Check that the motor operates normally.
