Combination Switch: Testing and Inspection

Inspection (With Scan Tool)

1. It will be able to diagnose defects of multifunction switch with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.
2. Select model and menu.




3. Select "In-panel module(IPM).




4. Select "Current data".




5. Check the input/output status of multifunction switch.

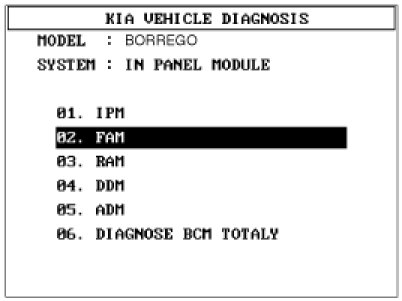

6. Select "Front Area Module(FAM)" or "Rear Area Module(RAM)".




7. If you will check multifunction switch input data operation forcefully, select "Actuation test".
