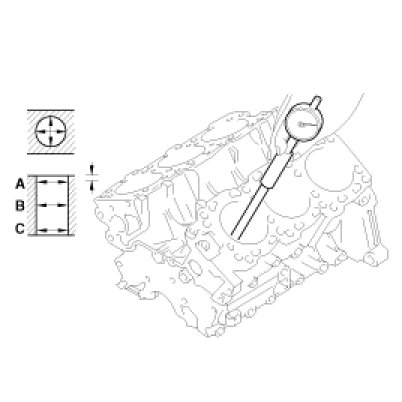

Cylinder Bore
Cylinder BoreStandard diameter
96.00 - 96.03 mm (3.7795 - 3.7807 in.)
7.

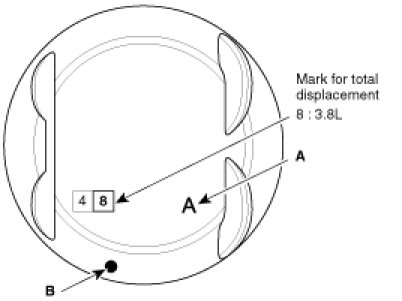

Check the
piston size code(A) and the front mark(B) on the piston top face.
Clearance
0.03 - 0.05 mm (0.0012 - 0.0020 in.)
Piston-to-cylinder clearance
0.03 - 0.05 mm (0.0012 - 0.0020 in.)
