Cylinder Head

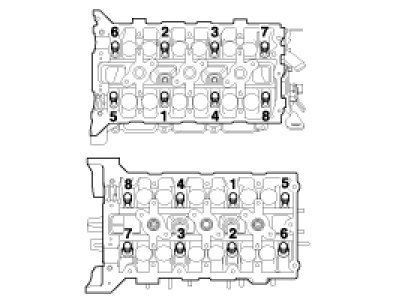

Cylinder HeadUsing SST(09221-4A000), install and tighten the
cylinder head bolts and plate washers, in several passes, in the sequence shown.
Tightening torque
Head bolt
39.2 N.m (4.0 kgf.m, 28.9 lb-ft) + 120 ° + 90 °
Bolt (A)
18.6 - 23.5 Nm (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
