Alternator: Service and Repair

Replacement

1. Disconnect the negative cable(A) from the battery.

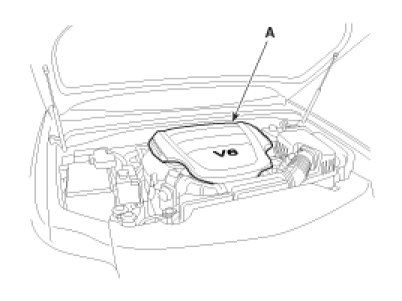

2. Remove the engine cover (A).

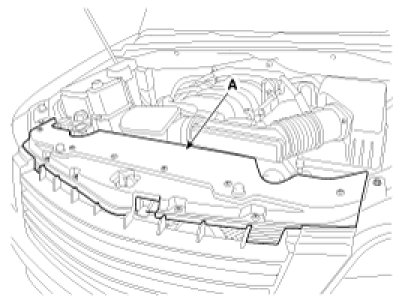

3. Remove the radiator grill upper guard (A).

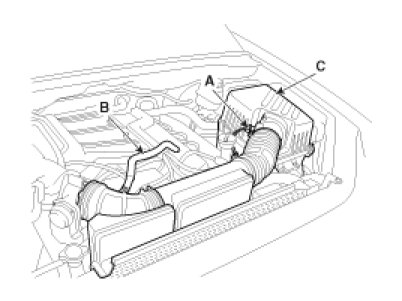

4. Disconnect the AFS connector (A) and breather hose (B) and then remove the air cleaner assembly (C).

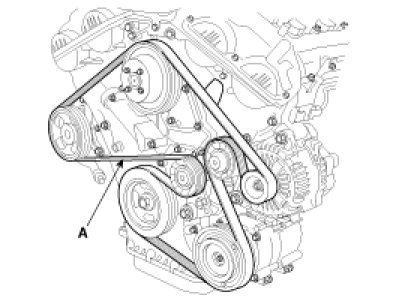

5. Remove the drive belt (A).

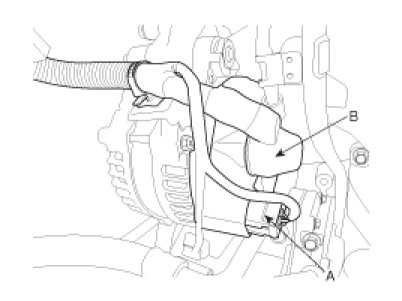

6. Disconnect the alternator connector (A) and cable (B) from the 'B' terminal.

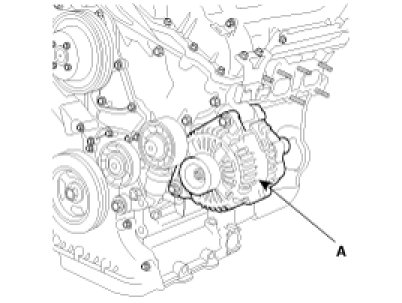

7. Remove the alternator (A).

Tightening torque :
26.5 - 33.3 N.m (2.7 - 3.4 kgf.m, 19.5 - 24.6 lb-ft)





8. Installation is reverse order of removal.
