Navigation System: Service and Repair





Removal

1. Disconnect the negative (-) battery terminal.

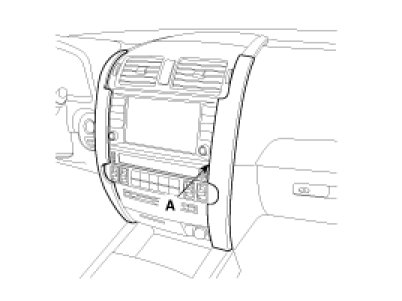

2. Remove the center fascia side garnish(A).

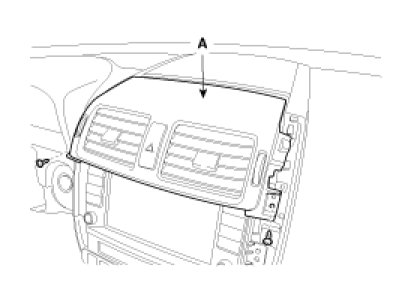

3. Remove the center air vent(A) after loosening the screws.




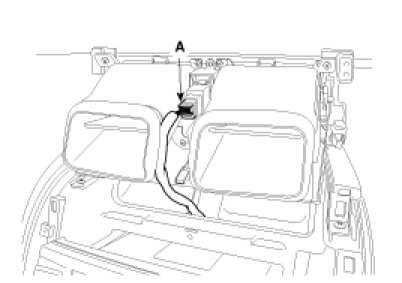

4. Disconnect the hazard lamp connector.

NOTE:
- Be careful not to damage the connector when disconnecting the connector.




5. Remove the mounting screws and disconnect the head unit connectors then remove the navigation head unit (A).






Installation

1. Reconnect the navigation connector and antenna cable.
2. Install the navigation head unit.
3. Reconnect the hazard lamp connector
4. Install the center air bent panel.
5. Install the center fascia side garnish.

NOTE:
- Make sure the navigation head unit connectors are plugged in properly, and the antenna cable is connected properly.

6. Check the navigation system.
