Repair Procedures
Replacement 1.
Disconnect the negative terminal from the battery.
2.

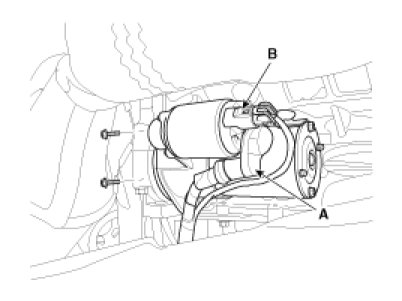

Disconnect the starter cable (A) from the B terminal on the solenoid, and the connector (B) from the S terminal.
3.
Loosen the starter mounting bolts and then remove the starter.
Tightening torque : 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
4.
Installation is reverse order of removal.
