Repair Procedures

REPLACEMENT

ROOF TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items.
A. Front seat, rear seat assembly.
B. Front, rear door scuff trim.
C. Front pillar trim.
D. Center lower, upper pillar trim.
E. Rear pillar trim.
F. Overhead console.
G. Room lamp.
H. Sunvisor, assist handle.
I. Vanity lamp and hands free mic.

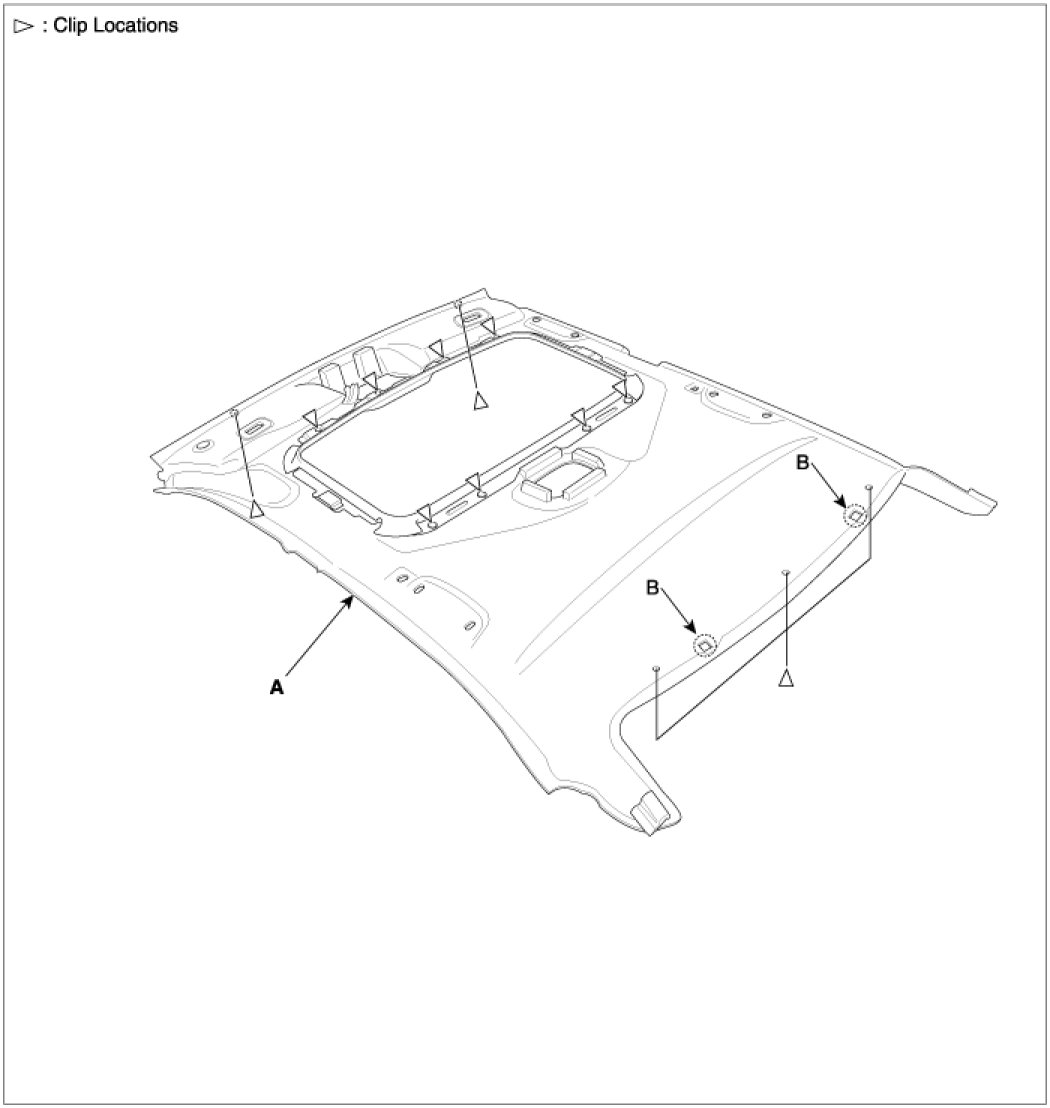

2. Remove the connector (B).
3. Remove the roof trim (A).
4. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
