Scantool Diagnostics
Monitor Scantool Data 1.
Connect scantool to data link connector (DLC)
2.
Ignition "ON" & Engine "OFF".
3.
Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scantool
4.
Move selector lever from "P" range to "D" range.

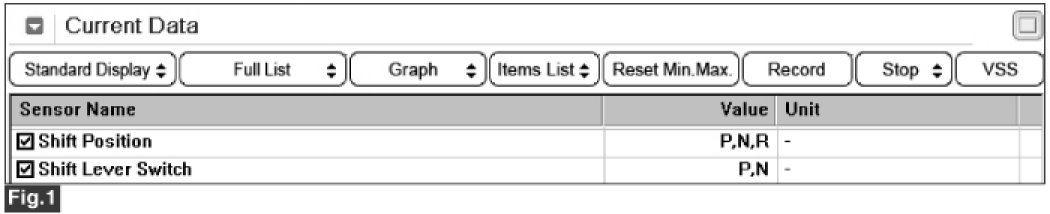

Fig 1) "P, N" RANGE

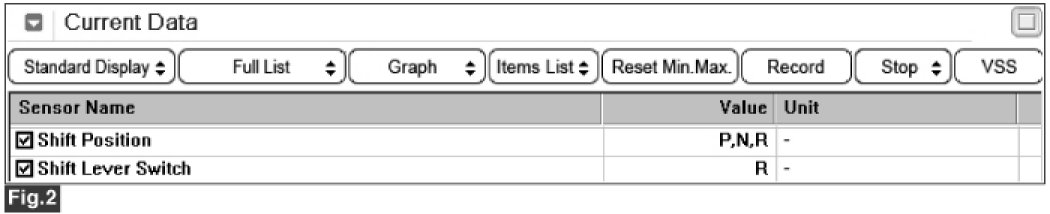

Fig 2) "R" RANGE

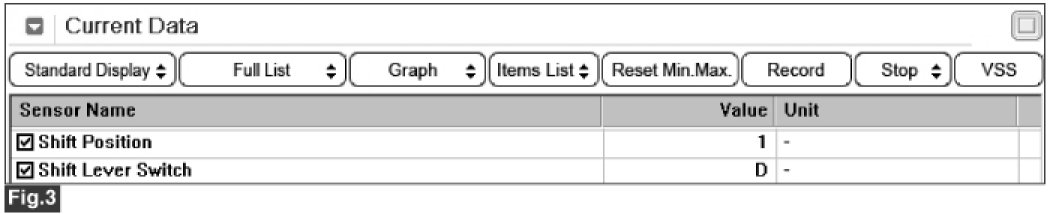

Fig 3) "D" RANGE
5.
Does "TRANSAXLE RANGE SWITCH" follow the referance data?
