Remote Control: Service and Repair
Removal 1.
Disconnect the negative (-) battery terminal.
2.
Remove the driver airbag module.
3.

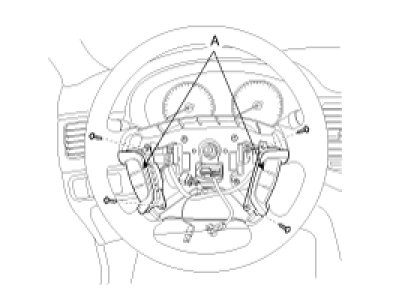

Remove the audio
remote control switch (A) after remove the steering wheel remote control switch connector and 2 screws.
Installation 1.
Reassemble the steering wheel
remote control switch after connecting the connector.
2.
Reassemble the driver airbag module.
