Radio, Stereo, and Compact Disc: Service and Repair
ReplacementAudio Assembly Replacement 1.
Remove the center facia panel.
2.

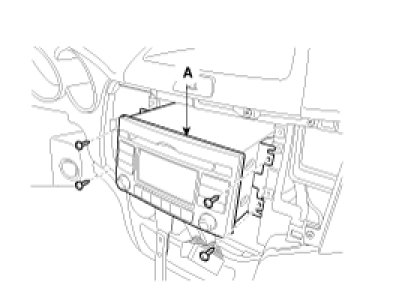

Loosen the screws.
3.

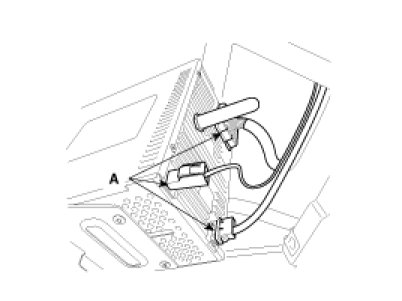

Disconnect the audio connector and
antenna cable, then remove the audio assembly (A).
4.
Disconnect the cluster connector (A), then remove the audio assembly.
5.
Installation is the reverse of removal.
NOTE: -
Make sure the connector are plugged in properly.
