Hood: Service and Repair

Replacements

Hood Assembly Replacement

NOTE:
- When removing and installing the hood, an assistant is necessary.
- Take care not to damaged the hood and body.
- When removing the clips, use a clip remover.

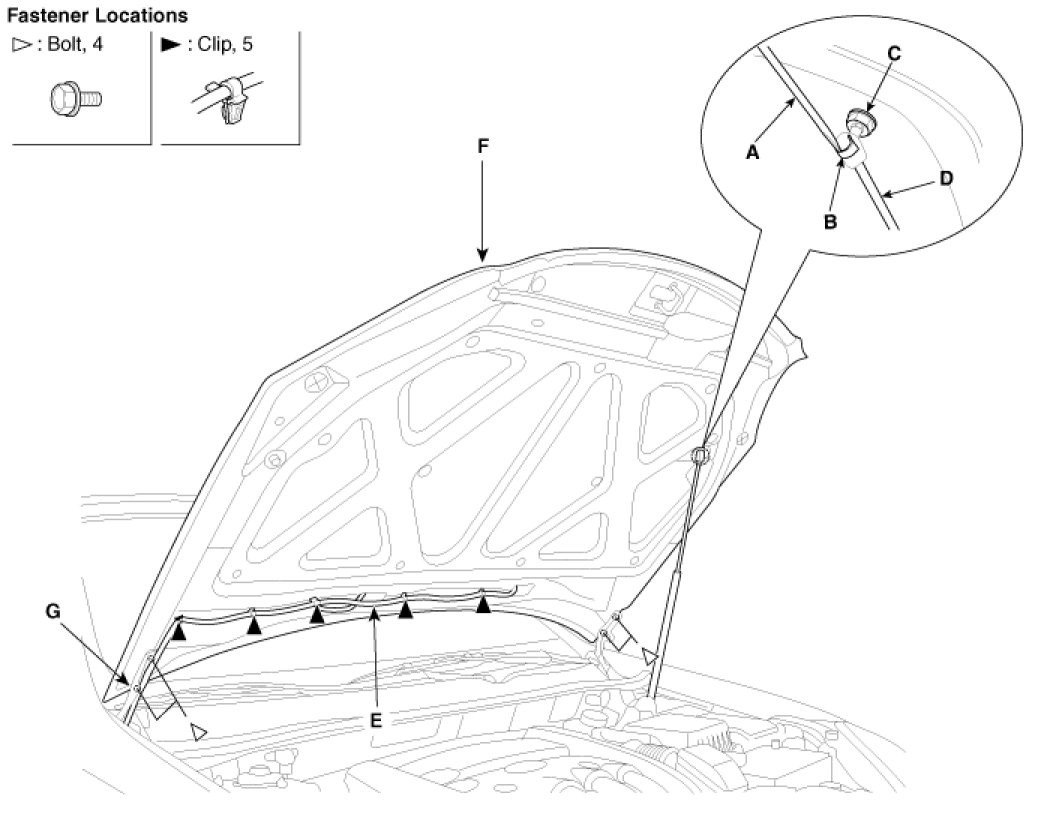

1. Disconnect the windshield washer nozzle connecting tube (E).
2. Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).
3. After loosen the hood hinge (G) mounting bolts, remove the hood (F).
4. Installation is the reverse of removal.

NOTE:
- Make sure the hood opens properly and locks securely.
- Adjust the hood alignment.
