Trunk / Liftgate Shock / Support: Service and Repair
ReplacementTrunk Lid Lift Replacement 1.

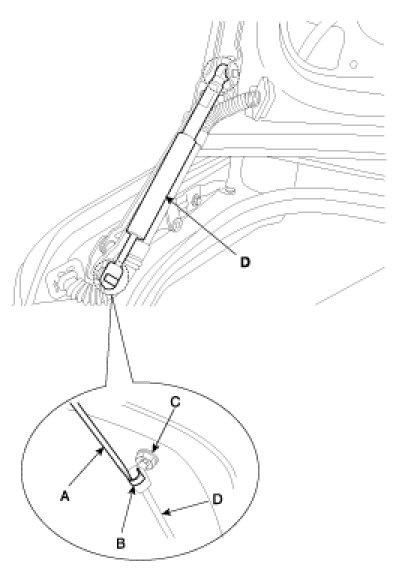

Using a screwdriver (A), lift up slightly the socket clips (B) of both ends on the lifter (D), and then remove the lifter from the bracket (C).
2.
Loosen the mounting nut, then remove the trunk lid lift (D).
3.
Push the socket of the lifter into the bracket for installation.
