Cover Replacement
ReplacementCover ReplacementNOTE: -
When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
-
Put on gloves to protect your hands.
1.

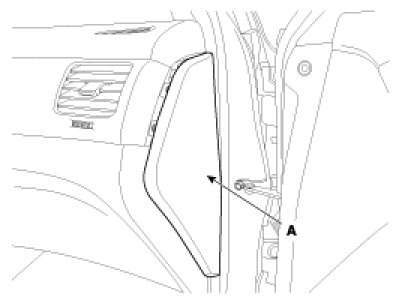

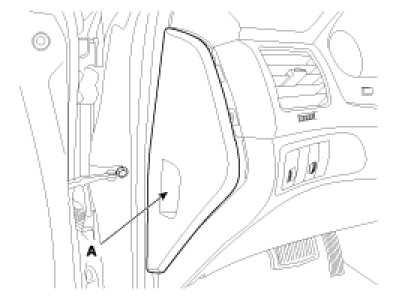

Remove the crash pad side cover (A).
[Driver's][Passenger's] 2.

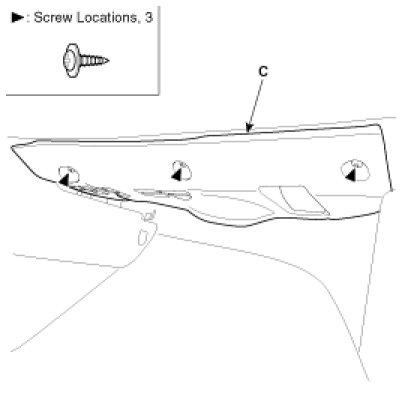

Remove the under cover (C).
3.
Installation is the reverse of removal.
