Cowl Side Trim Replacement
REPLACEMENTCOWL SIDE TRIM REPLACEMENTNOTE: -
Put on gloves to protect your hands.
-
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
-
Take care not to bend or scratch the trim and panels.
1.
Remove the front door scuff trim.
2.

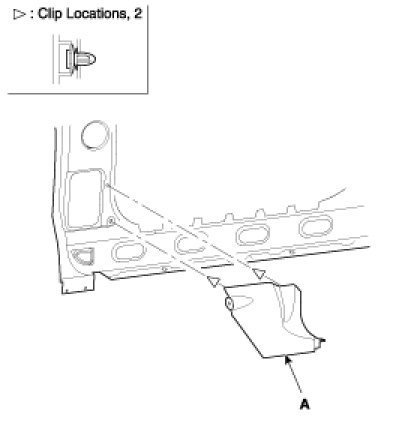

Remove the cowl side trim (A).
3.
Installation is the reverse of removal.
NOTE: -
Replace any damaged clips.
