SUNROOF ASSEMBLY REPLACEMENT
1. Remove the follows parts.
A. Front and rear door scuff trim.
B. Front and rear pillar trim.
C. Center pillar trim.
D. Headliner.
E. Sunroof glass.

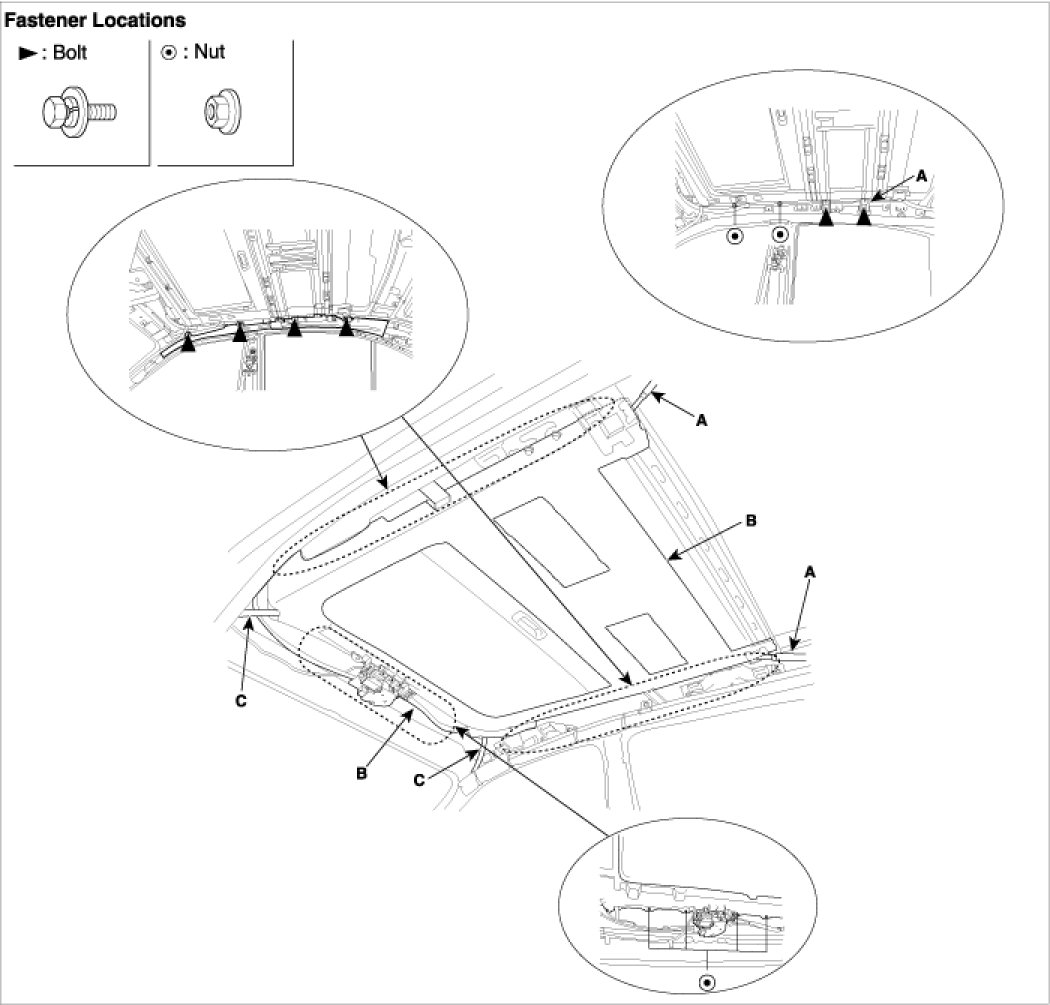

2. Disconnect the drain tubes (C).
3. Remove the bracket (A).
4. After loosening the mounting bolts and nuts, remove the sunroof assembly (B).

NOTE:
- Take care not to scratch the interior trims and other parts.

5. Installation is the reverse of removal.





SUNSHADE AND DRIP RAIL REPLACEMENT
1. Remove the sunroof assembly.

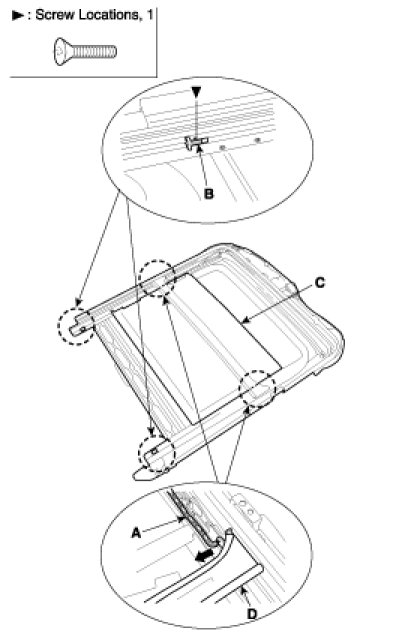

2. Remove the drip link (A) and sunshade stopper (B).
3. Remove the sunshade (C) and drip rail (D).




4. Installation is the reverse of removal.

GUIDE ASSEMBLY REPLACEMENT
1. Remove the sunroof assembly.

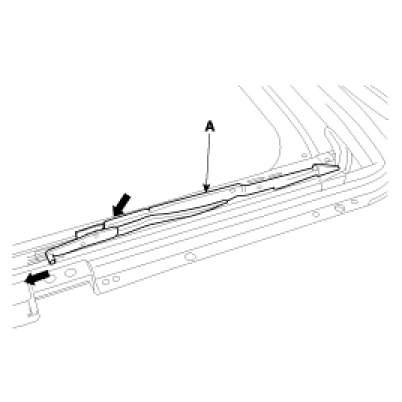

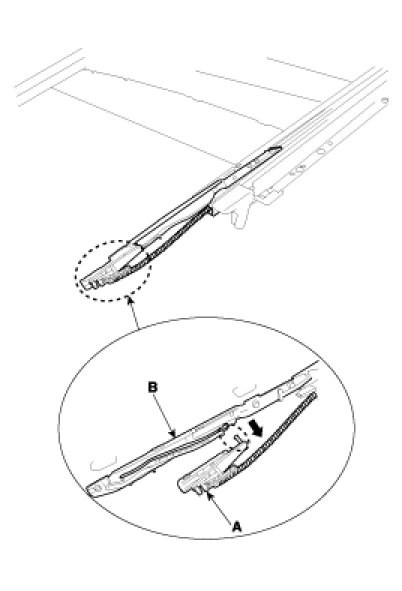

2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.




3. Remove the guide (A) and slide (B).




4. Installation is the reverse of removal.

NOTE:

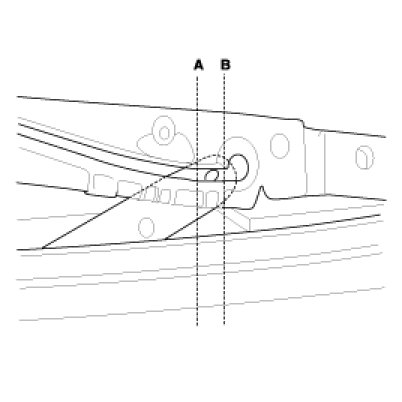

- Make sure to align the slide with the center of "A"and "B"
- Make sure to initialize the motor.
