Built before 12/14/2008

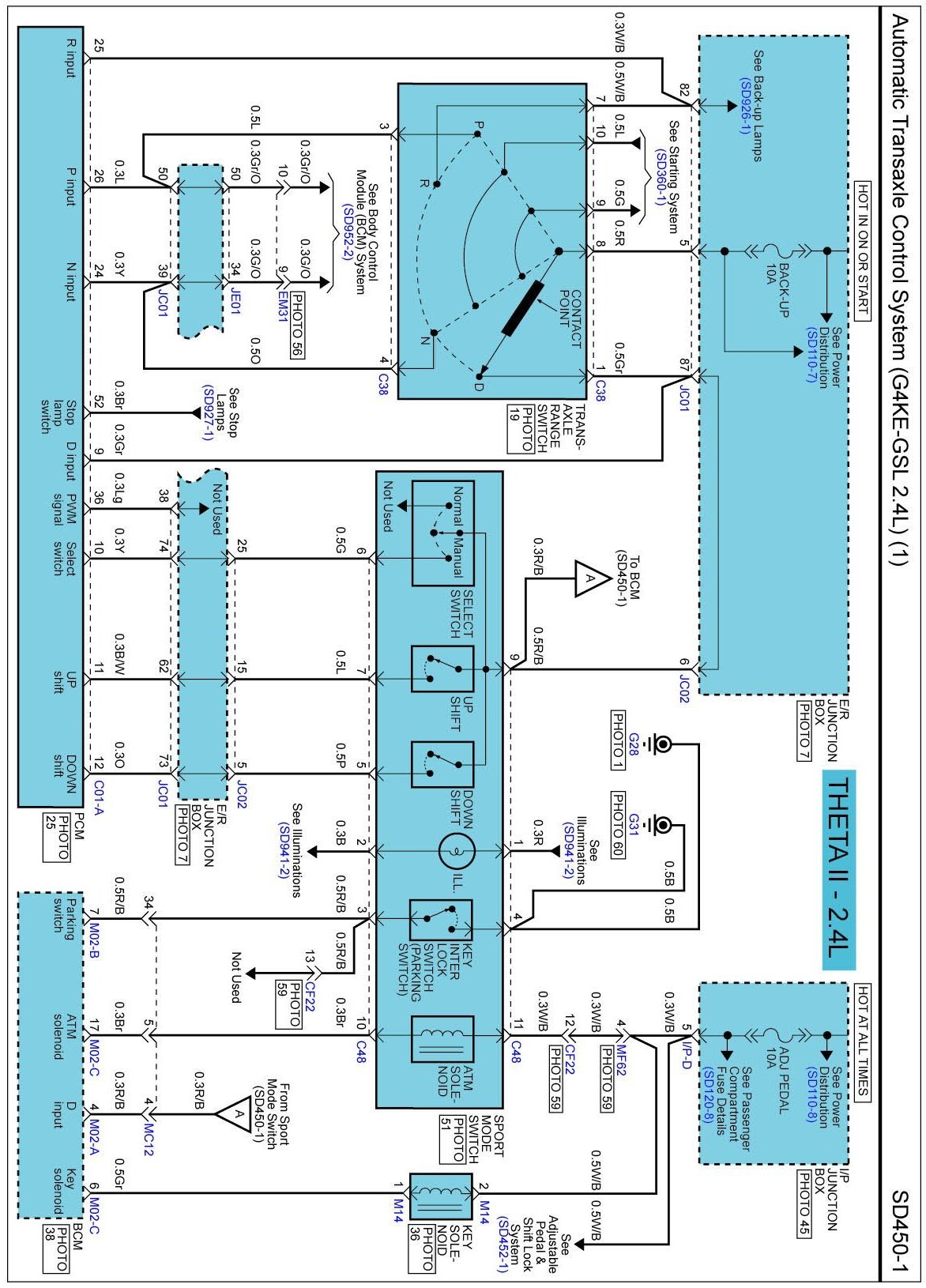

Automatic Transaxle Control System (1) (Built Before 14-12-2008):

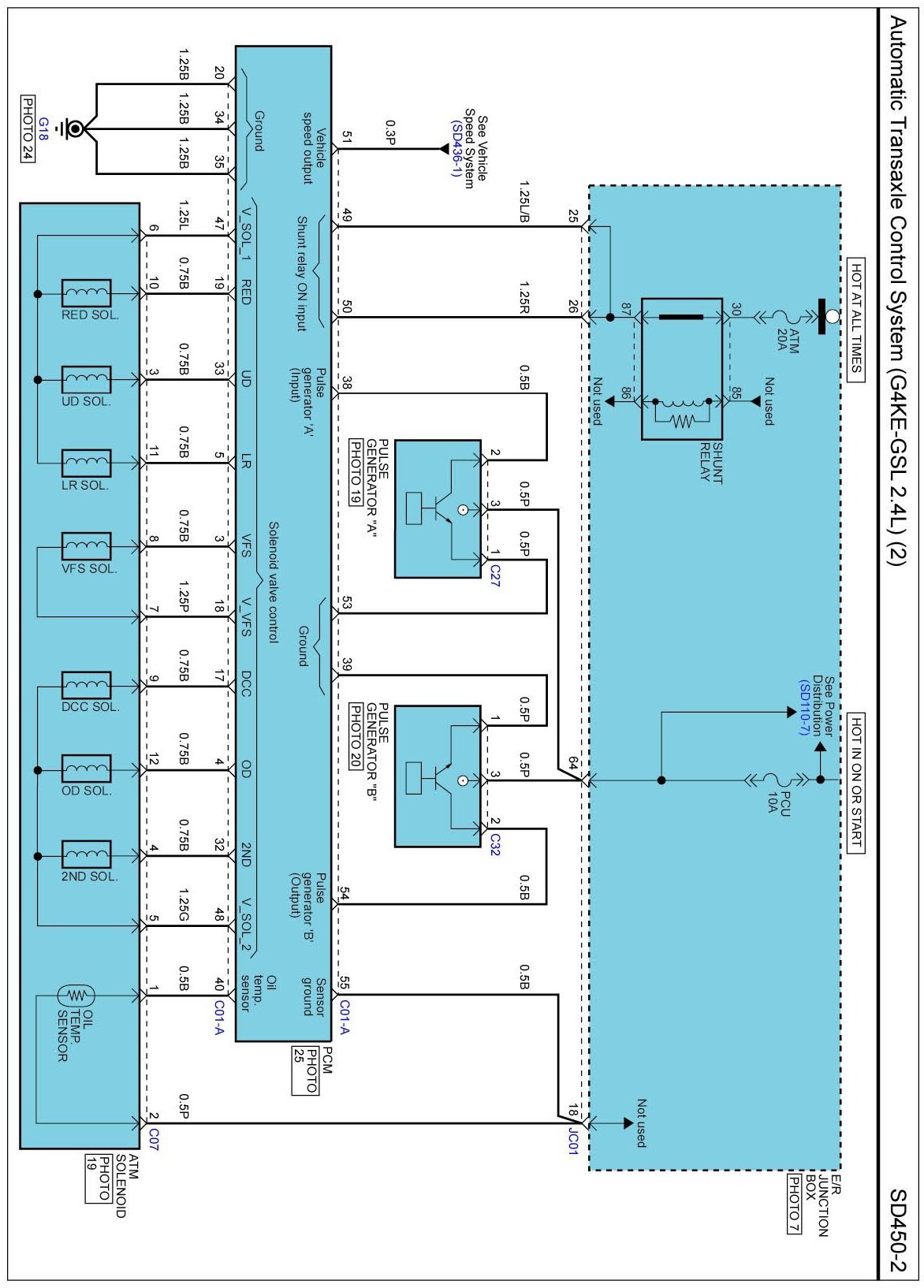

Automatic Transaxle Control System (2) (Built Before 14-12-2008):

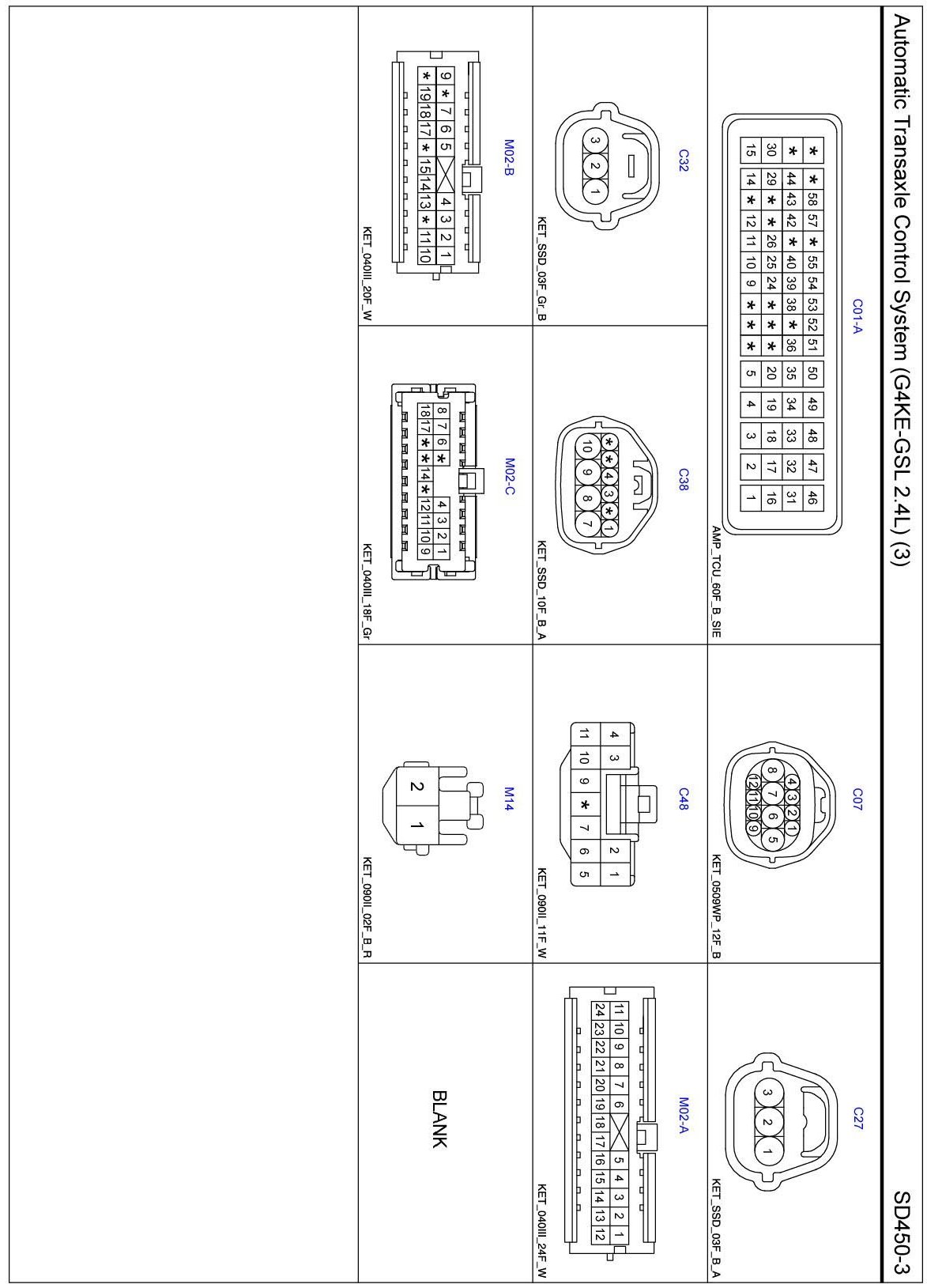

Automatic Transaxle Control System Connector Pin Outs (Built Before 14-12-2008):






Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations

Connector Views: The Connector Pin Out Views for connectors shown on these diagrams can be found on the Connector Pin Out images that follow most sets of system diagrams.
