Room Lamp and Replacement
REPLACEMENTROOM LAMP AND REPLACEMENTNOTE: -
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
-
Put on gloves to protect your hands.

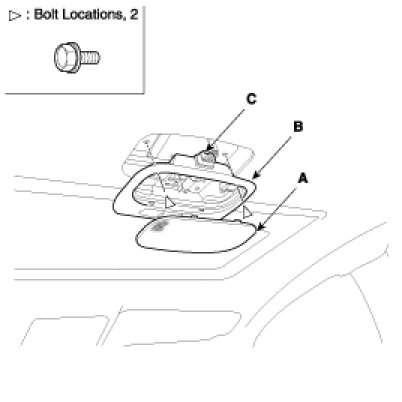

1.
Remove the room lamp.
A.
Remove the lens (A).
B.
Remove the screws.
C.
Pull out the room lamp (B).
D.
Disconnect the connector (C).
2.
Installation is the reverse of removal.
