Disassembly
DISASSEMBLY 1.

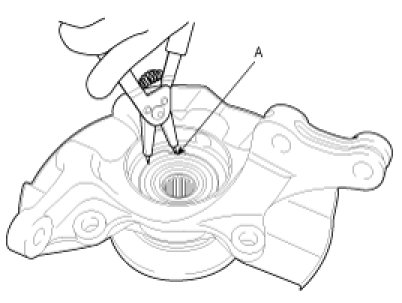

Remove the snap ring (A).
2.

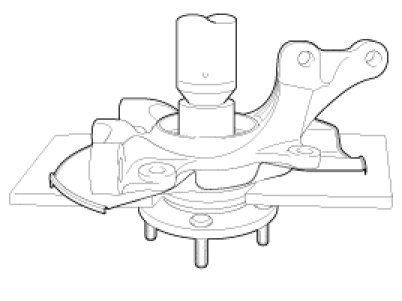

Remove the hub from the knuckle assembly using the SST (09545-34100).
3.

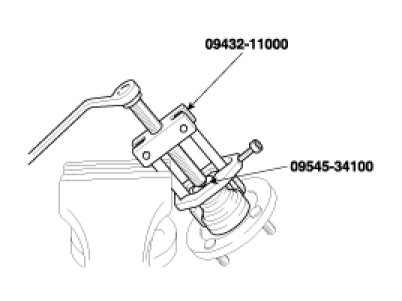

Remove the wheel bearing inner race from the hub using the SST (09432-11000, 09545-34100).
4.
Remove the wheel bearing outer race from the hub using the SST (09216-21600, 09216-21100).
