Evaporative Emission Control Canister: Service and Repair
Removal 1.
Remove the
fuel tank .
2.

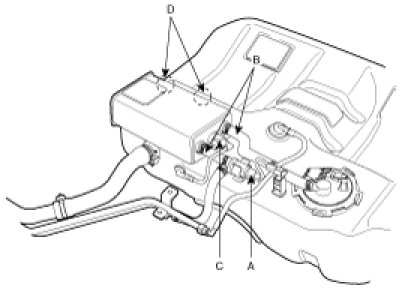

Disconnect the canister close valve connector (A).
3.
Disconnect the vacuum hoses (B) and the vacuum tube quick-connector (C) from the canister.
4.
Remove the canister after unscrewing the mounting screws (D).
InstallationInstall the canister according to the reverse order of "REMOVAL" procedure.
