Positive Crankcase Ventilation Valve: Service and Repair
Removal 1.

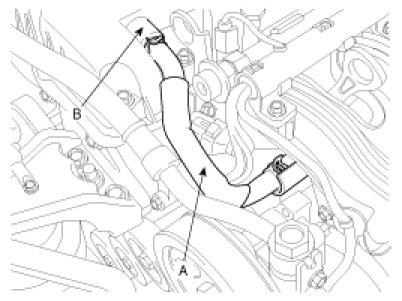

Disconnect the vacuum hose (A) and remove the PCV valve (B).
InstallationInstall the PCV valve and tighten to the specified torque.
PCV valve installation :7.8 - 11.8 Nm (0.8 - 1.2 kgf.m, 5.8 - 8.7lb-ft)
