Oil Pump

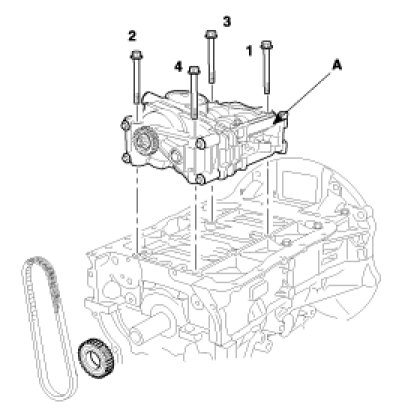

Oil Pump AssemblyTightening torque
16.7 N.m (1.7 kgf.m, 12.3 lb-ft) + 60° + 60°

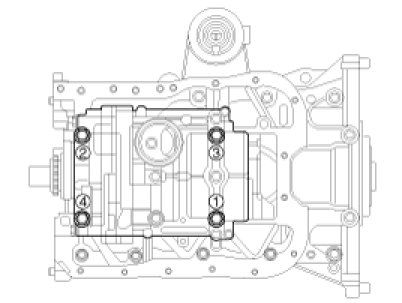

Bolting order
A.
Assemble the bolts in order number as shown with seating torque 25.5 N.m (2.6 kgf.m, 18.8 lb-ft)
B.
Unfasten the bolts as reverse bolting order. (4-3-2-1)
C.
Assemble the bolts as specified bolting order in same increments as follows.
