Disassembly

DISASSEMBLY

KEY LOCK ASSEMBLY

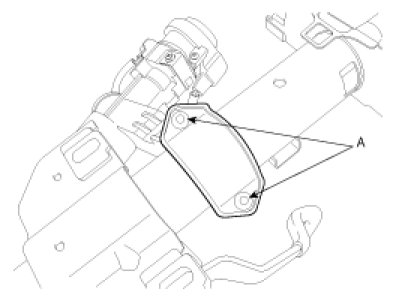

1. Make a groove on head of the special bolt (A) by using a punch.




2. Remove the key lock assembly from the steering column by loosing special bolts.

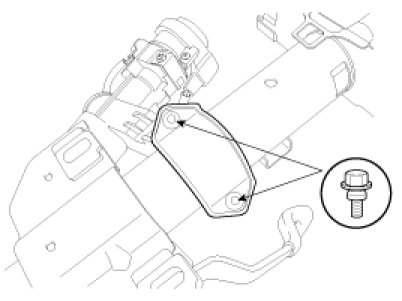

3. When reassembling the key lock assembly, loosely install new special bolts to the steering column shaft.

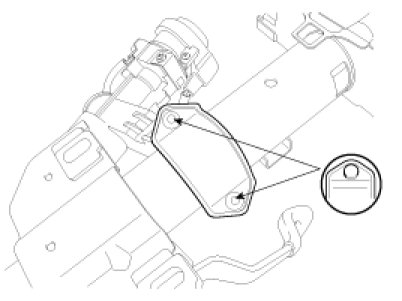

4. Tighten the special bolt until its head is cut off.





UNIVERSAL JOINT ASSEMBLY

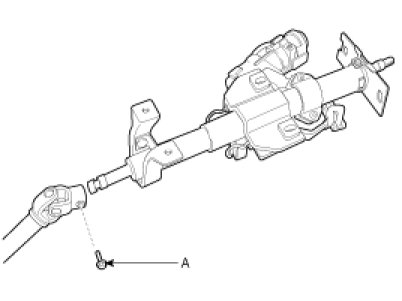

1. Remove the universal joint assembly from the steering column assembly by loosening the bolt (A).

Tightening torque Nm (kgf.m, lb-ft):
18 - 25 (1.8 - 2.5, 13 - 18)





2. Reassembly is the reverse of disassembly.
