Repair Procedures

REMOVAL

1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire (A) from rear hub (B).





CAUTION:
Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).

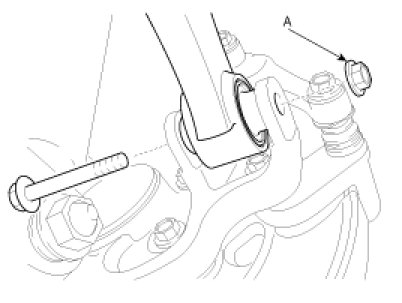

3. Remove the rear upper arm bolt and nut (A) from the knuckle.

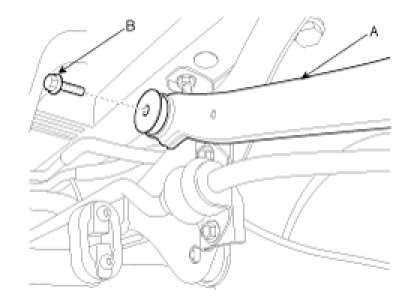

4. Remove the rear upper arm (A) bolt (B) from the cross member.






INSTALLATION

1. Install the rear upper arm (A) mounting bolt (B) to the cross member.

Tightening torque Nm (kgf.m, lb-ft) :
98.1 - 117.7 (10.0 - 12.0, 72.3 - 86.8)





2. Install the rear upper arm mounting nut (A) to the knuckle.

Tightening torque Nm (kgf.m, lb-ft) :
98.1 - 117.7 (10.0 - 12.0, 72.3 - 86.8)





3. Install the wheel and the tire (A) to the rear hub (B).

Tightening torque Nm (kgf.m, lb-ft) :
88.3 - 107.9 (9 - 11, 65.1 - 79.6)






CAUTION:
Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
