Clutch: Description and Operation





DESCRIPTION

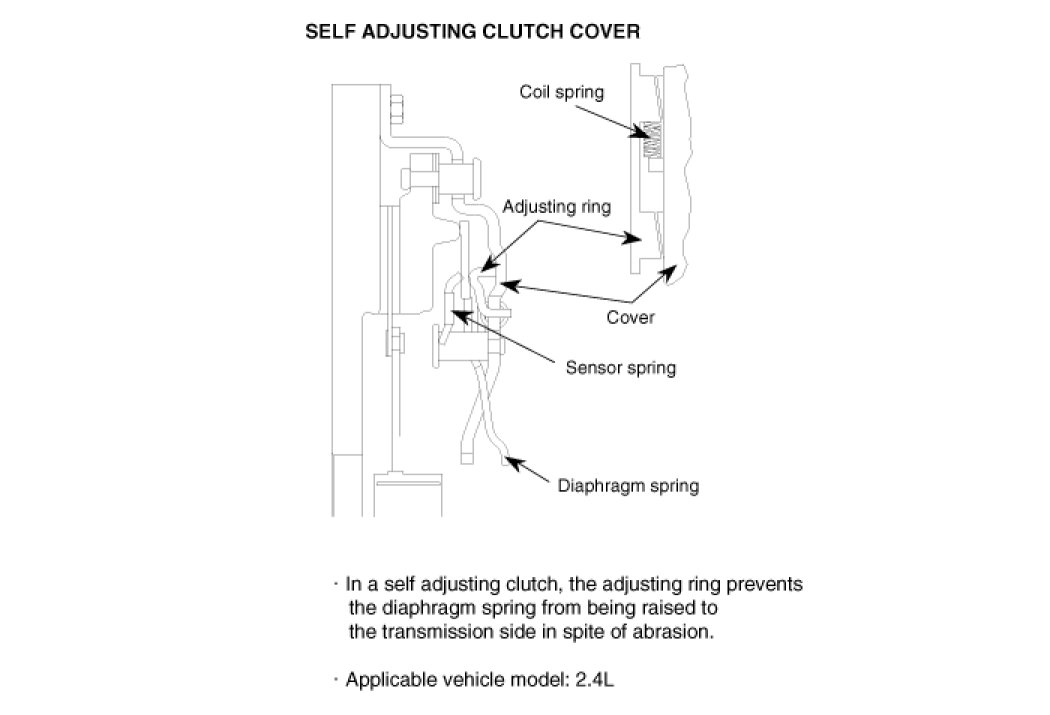

SELF ADJUSTING CLUTCH(S.A.C.) COVER
- A self-adjusting clutch cover is used to increase durability, a cover weight is increasing and a clutch pedal pressure can be more needed.
- To make up for this defect, the self adjusting clutch system makes the requested pedal pressure minimized so that makes the maintenance cycle longer.
- Applied only in 2.4L gasoline engine vehicles.





CONCENTRIC SLAVE CYLINDER-C.S.C.
It improves working efficiency and lowers the number and the weight of part by unifying clutch release control parts(clutch release bearing ~ clutch release cylinder) in a manual transaxle.

OPERATION

CONCENTRIC SLAVE CYLINDER-C.S.C

When the clutch pedal is pressed, oil pressure is transmitted along the arrow directions shown below and that moves the clutch slave cylinder and the diaphragm spring of the clutch cover.
