Remote Control: Service and Repair





Removal

1. Remove the driver airbag module.
2. Remove the steering wheel.

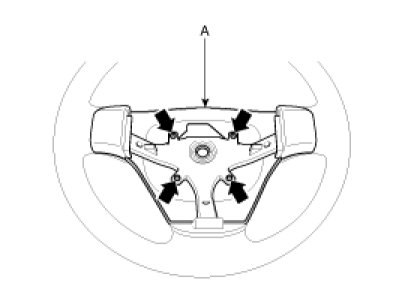

3. Remove the steering wheel lower cover(A) after loosening the screws(4EA).




4. Remove the audio remote control switch after disconnecting the connector and loosening 2 screws.






Installation

1. Install the audio remote control switch to the steering wheel.
2. Install the steering wheel.
3. Reconnect the audio remote control switch connector and airbag connectors.

NOTE:
- Make sure the speaker connectors are plugged in properly.

4. Install the driver airbag module.
