Pressure Regulating Solenoid: Testing and Inspection





Inspection

1. Remove the battery terminal.
2. Lift the vehicle.

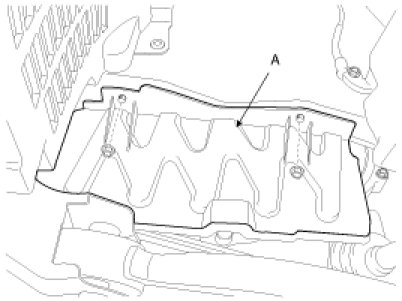

3. Remove the side cover(A). (Bolt:2EA)

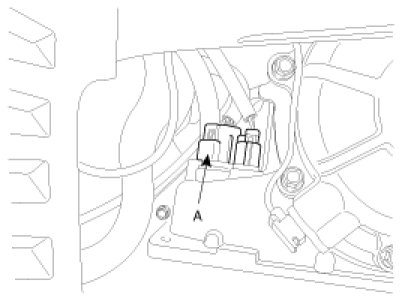

4. Disconnect the solenoid valve connector(A).

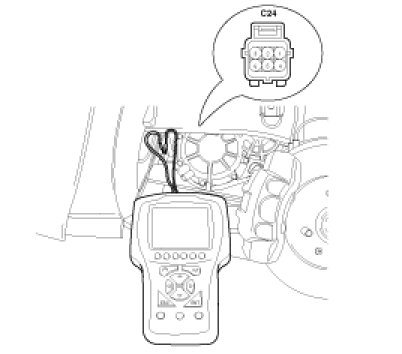

5. Measure the resistance between terminals of the solenoid valve connector on the transaxle case.









6. If the result isn't within the standard value, remove the valve body cover.
7. Measure the resistance after removing the solenoid valve connector.




8. If the result isn't within the standard value, replace the solenoid valve.
