Headliner Replacement

REPLACEMENT

HEADLINER REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items.
A. Front seat, rear seat assembly.
B. Door scuff trim.
C. Front pillar trim.
D. Center pillar trim.
E. Rear pillar trim.
F. Overhead console.
G. Room lamp.
H. Sunvisor.
I. Assist handle

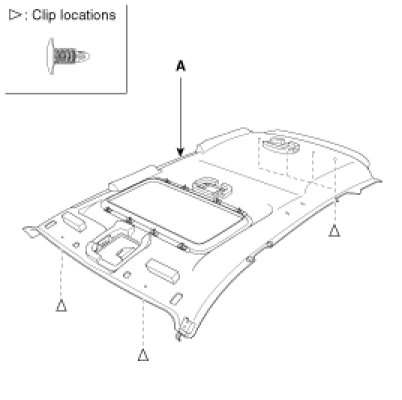

2. Remove the roof trim (A).




3. Installation is the reverse of removal.

NOTE:
Replace any damage clips.
