Evaporative Emission Control Canister: Service and Repair

Removal

[Canister]

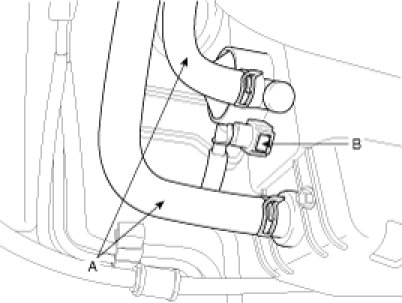

1. Disconnect the vacuum hoses (A) and the vacuum tube quick-connector (B).

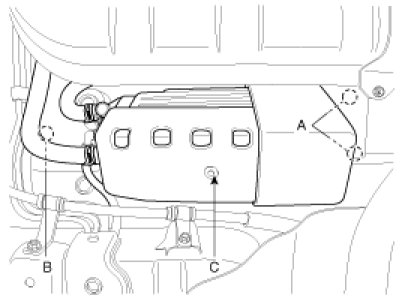

2. Unscrew the canister mounting bolts (A) and nut (B), and then remove the canister (C) from the vehicle.

[Auxiliary Canister - 2.4 DOHC SULEV only]

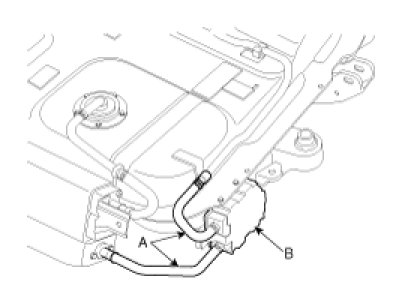

1. Disconnect the vacuum hoses (A).
2. Remove the auxiliary canister (B) after removing the mounting bolts.

Installation

Installation is reverse of removal.
