Power Tail Gate Switch

INSPECTION

OVERHEAD CONSOLE DOOR SWITCH INSPECTION
1. Check the overhead console door switch input/output value by using the diagnostic tool. If the operation of overhead console door switch is abnormal, check the IPM and replace.
2. When checking the overhead console switch operation, select a vehicle type and "IPM".

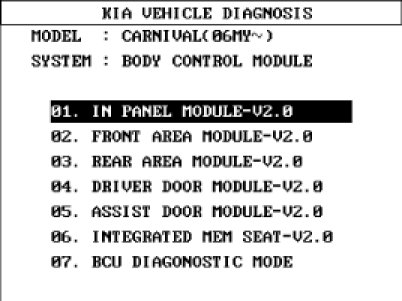

3. Select a in panel module (IPM) and "02. CURRENT DATA".

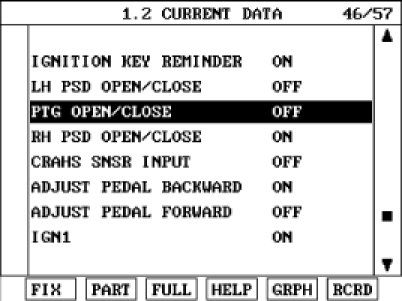

4. Check the PSD PTG power control switch and PTG switch output value.




5. Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.
