Seat Back Frame: Service and Repair








SEAT FRAME REPLACEMENT
1. Remove the following items.
A. Seat back cushion.
B. Seat cushion

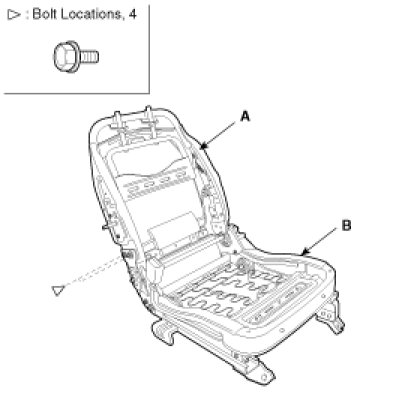

2. After loosening the mounting bolts, then disconnect the seat back frame (A) and seat cushion frame (B).




3. Installation is the reverse of removal.
