Seat Temperature Switch: Service and Repair








Removal

Front Seat Warmer Switch
1. Disconnect the negative (-) battery terminal

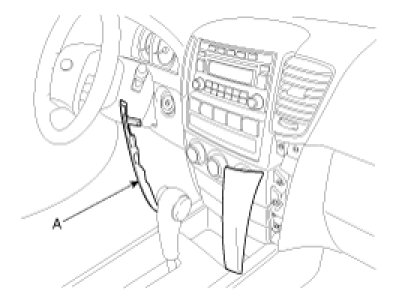

2. Remove the side panel (A) after loosening the 2 screws.

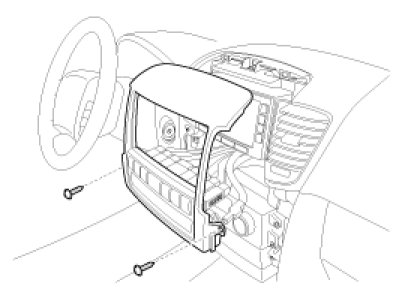

3. Remove the front seat heater switch connector from the center facia panel.




4. Remove the front seat heater switch (A).






Installation

Front Seat Warmer Switch
1. Reassemble the front seat warmer switch.
2. Connect the front seat warmer switch connector to the center facia panel.
3. Reassemble the center facia panel.
