Brake Pad: Testing and Inspection

INSPECTION

1. Check the cylinder for wear, damage and rust.
2. Check the piston surface for wear, damage and rust.
3. Check the caliper body and sleeve for wear.
4. Check that grease is adhesive, and the pad and backing metal are damaged.

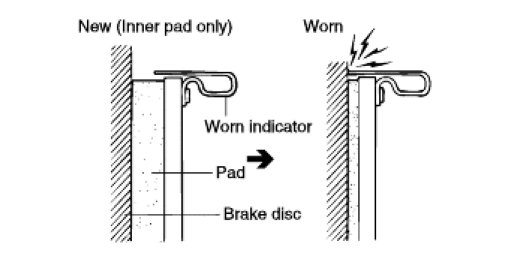

5. Check the pads for wear or oil contamination and replace if necessary.

NOTE:
The pads for the right and left wheels should be replaced at the same time.

Pad thickness wear limit : 2.0mm (0.08 in.)





6. Check for worn or damaged dust boots. If dust or mud had entered the caliper assembly through the seal, the caliper assembly must be replaced or repaired.
