Repair Procedures
REPLACEMENT 1.
Disconnect the negative (-) battery terminal.
2.

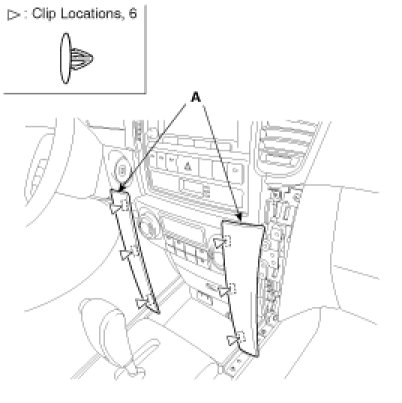

Remove the side garnish (A).
3.

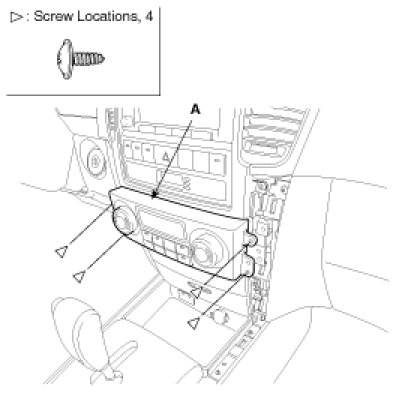

After loosening the heater control mounting screw, remove the heater control unit(A).
4.

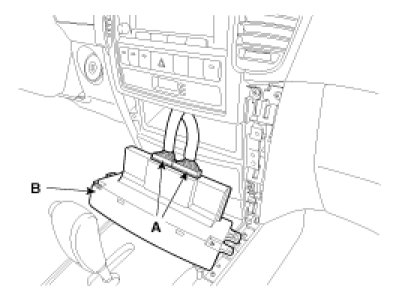

After disconnect the connector(A), remove the heater control unit(B).
5.
Installation is the reverse order of removal.
