Evaporator Temperature Sensor / Switch: Service and Repair
REPLACEMENT 1.
Remove crash pad .
2.
Remove the cowl cross bar .
3.
Remove the blower unit.
4.

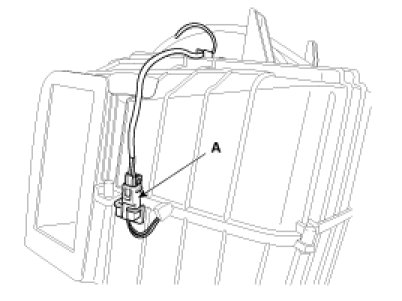

Disconnect the evaporator connector(A).
5.
Remove the blower unit case
6.

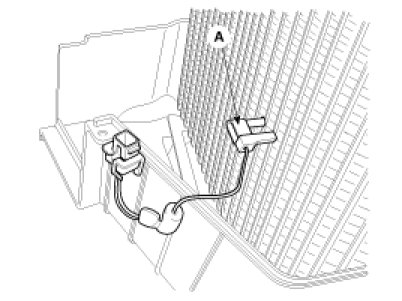

Remove the evaporator sensor(A).
7.
Installation is the reverse order of removal.
