Solar Sensor: Testing and Inspection
INSPECTION 1.
Ignition "ON"
2.

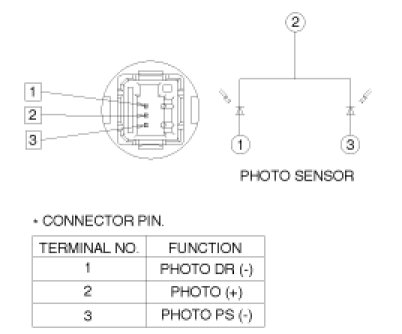

Emit intensive light toward photo sensor using a lamp, and check the output voltage change between terminal 2 and 1.
3.
Check the output voltage change between terminal 3 and GND.
4.
The voltage will rise with higher intensive light and reduce with lower intensive light.
