Turn Signal Lamp

REMOVAL

REAR LAMP
1. Disconnect the negative (-) battery terminal.

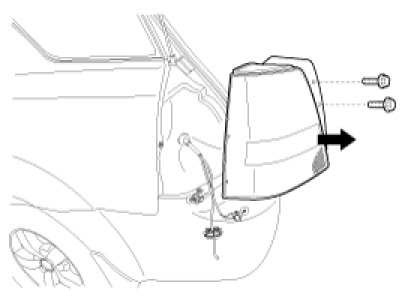

2. Loose the 2 screws holding the rear combination lamp then disconnect the connector. And then remove the outside rear combination lamp assembly.

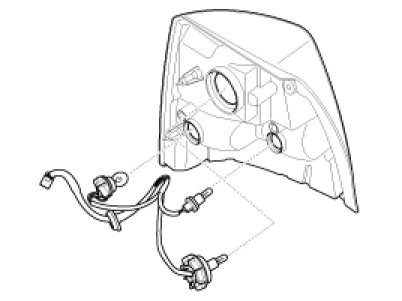

3. Remove the bulbs from the rear combination lamp assembly.

INSTALLATION

REAR LAMP
1. Connect the bulbs to the rear combination lamp assembly.
2. Connect the rear combination lamp connector.
3. Reassemble the rear combination lamp assembly.
