Repair Procedures








REMOVAL

1. Removal of pressure hose and tube.

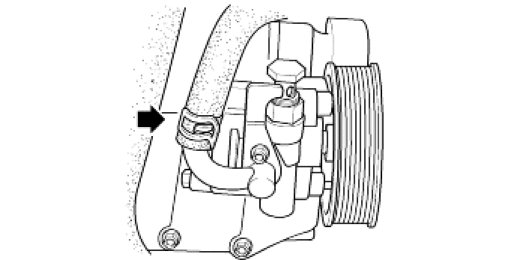

(1) Disconnect the pressure hose from the steering oil pump.




(2) Loosen the bolt of pressure hose mounting clamp.

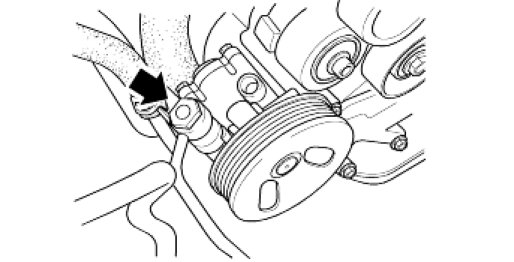

(3) Remove the pressure/return tube clip mounting bolt.

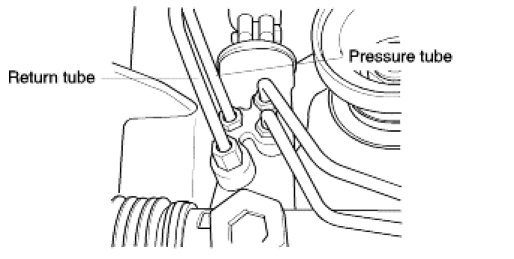

(4) Disconnect the pressure tube from the steering gear box, and then disconnect the pressure hose and the tube.




2. Removal of return hose and tube.

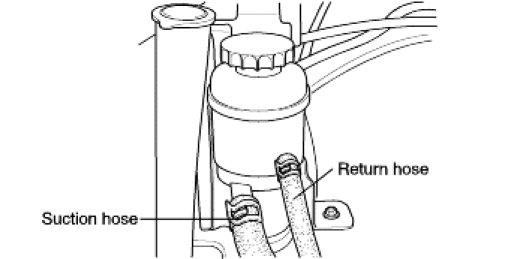

(1) Disconnect the return hose from the oil reservoir.




(2) Loosen the return tube clip mounting bolt.
(3) Remove the return/pressure tube clip mounting bolt.
(4) Disconnect the return tube from the steering gear box, and then disconnect the return hose and the tube.
3. Removal of suction hose.
(1) Disconnect the suction hose from the steering oil reservoir.
(2) Disconnect the suction hose.






INSTALLATION

CAUTION:
- Install the hose lest they should be twisted and come in contact with any other parts.
- After installation, bleed the air.
