Engine Control Module: Service and Repair
REPLACEMENT 1.
Turn ignition switch off.
2.
Disconnect the battery (-) cable from the battery.
3.

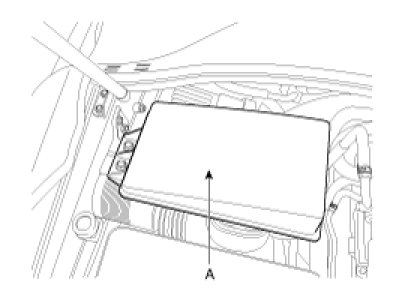

Remove the resonator (A).
4.

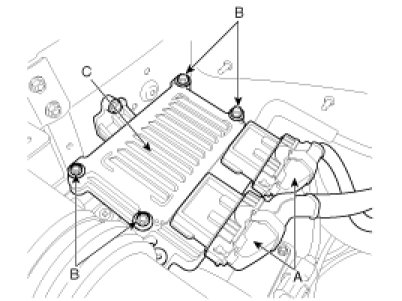

Disconnect the ECM connectors (A).
5.
Unscrew the ECM mounting bolts (B) and remove the ECM from the bracket (C).
6.
Install new ECM
ECM installation bolts : 9.8 - 11.8 Nm (1.0 - 1.2 kgf-m, 7.2 - 8.7 lbf-ft)
