Variable Induction Control Actuator: Testing and Inspection








INSPECTION

FUNCTION AND OPERATION PRINCIPLE

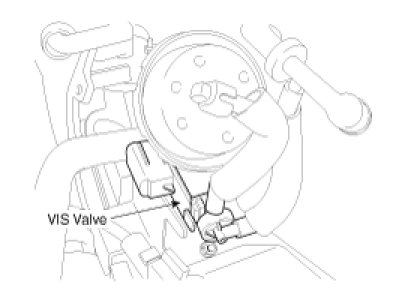

Variable Intake Solenoid (VIS) Valve is installed on the intake manifold and is used to improve intake efficiency.

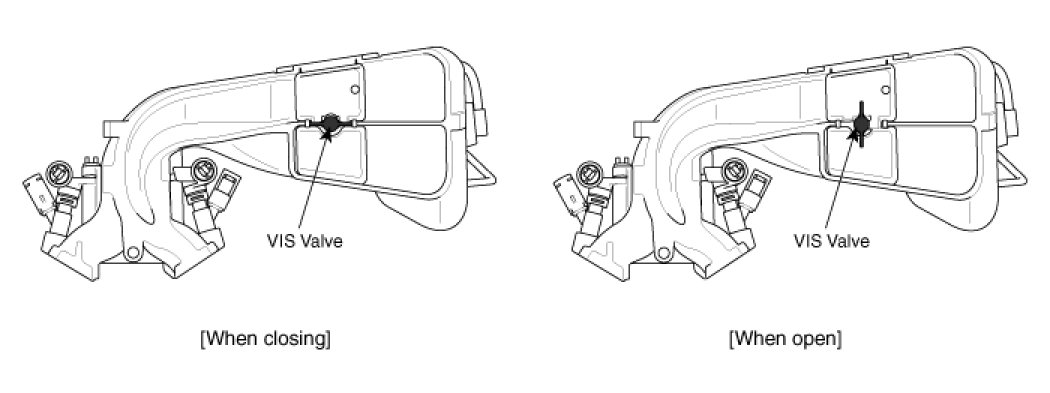

1. Low/Middle Speed: VIS Valve Close -> Resonation Effect -> Improving Intake Efficiency
2. High Speed: VIS Valve Open -> Improving Intake Inertia Effect -> Improving Intake Efficiency









SPECIFICATION

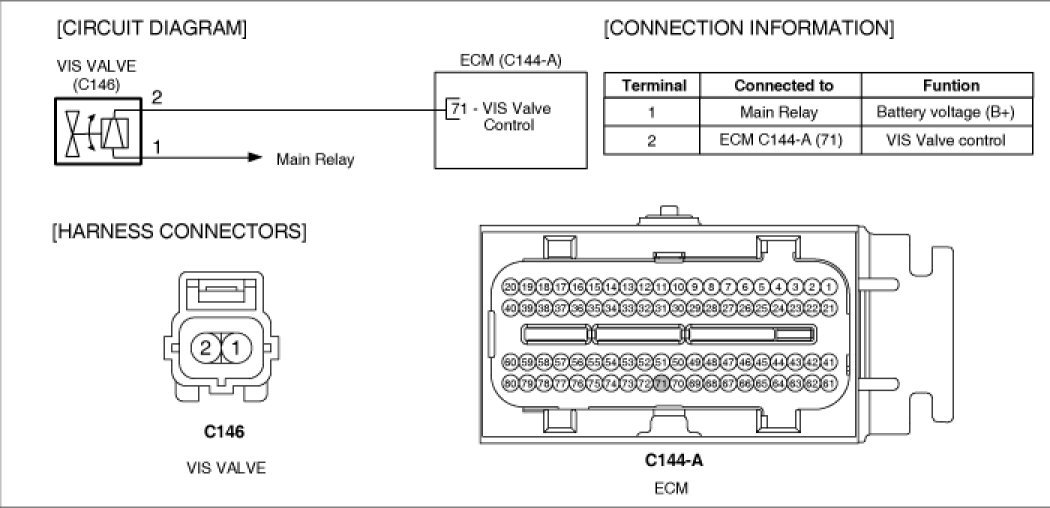

SCHEMATIC DIAGRAM





COMPONENT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect VIS Valve connector.
3. Measure resistance between VIS Valve terminals 1 and 2.
4. Check that the resistance is within the specification.

Specification: Refer to SPECIFICATION.
