Wheel Stud / Lug Nut
WHEEL NUT TIGHTENING 1.
Tightening torque.
Tightening torque:
90-120 Nm (9-12 kg-m, 65-86 lb-ft).
CAUTION: When using an impact-wrench, adjust the tightening torque completely.
2.

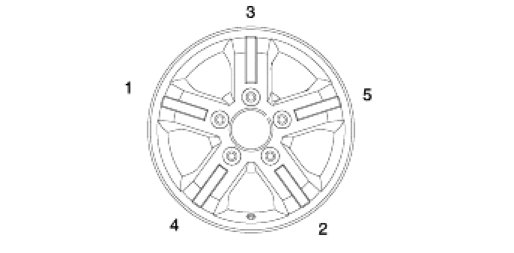

Tighten all the wheel nut according to the order shown in the illustration until they are all tight.
