Monitor Scantool Data





Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".

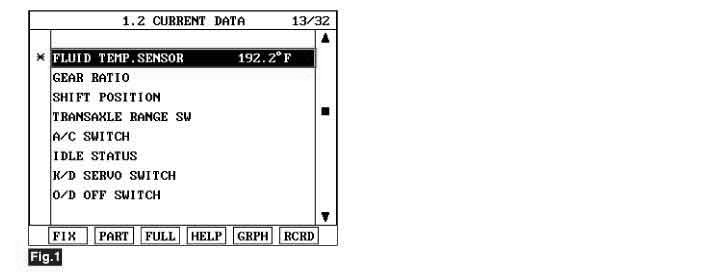

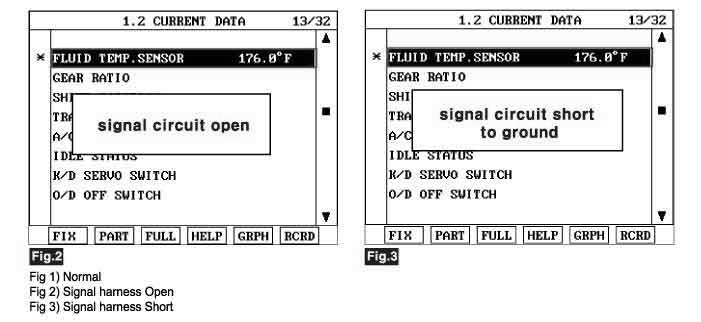

3. Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR" parameter on the scantool
A. Specification : Increasing Gradually








4. Does "TRANSAXLE FLUID TEMPERATURE SENSOR" follow the referance data?
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection" procedure
