Repair Procedures
REMOVAL 1.
Remove the engine cover.
2.
Disconnect the front oxygen sensor connector.
3.

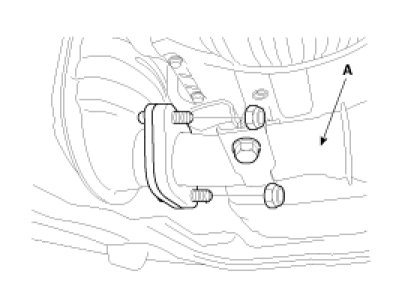

Remove the front
muffler(A).
Tightening torque
39.2 - 58.8 N.m(4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
4.
Remove the heat protector.
5.

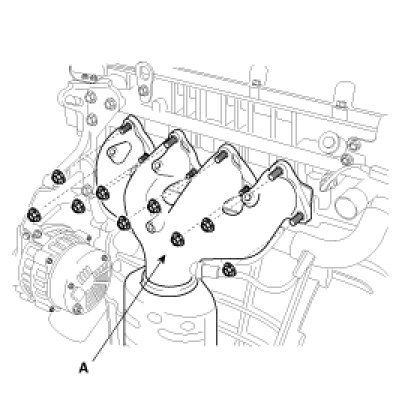

Remove the
exhaust manifold and
catalytic converter assembly(A).
6.
To install, reverse the removal procedure with new gaskets.
