Repair Procedures (M5BF2)

REMOVAL

1. Remove the console box.
2. Remove the split pin and holder.
3. Remove the shift assembly.

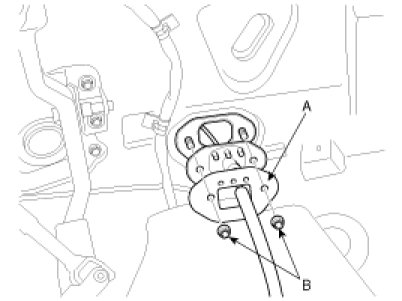

4. Remove retainer (A) and nuts (B).




5. Remove the split pin and holder. (Transaxle side)
6. Remove the shift cable and select cable.

INSTALLATION

1. Install the shift lever assembly.
2. Install to the cable after locating the shift lever and select lever at the neutral position.

NOTE:
Operating lever of body side check secure operation of lever of T/M side after installation.
