Monitor Scantool Data
C1103 Ignition Voltage FaultScantool Diagnosis - Monitor Scantool DataMonitor Scantool Data 1.
Connect scantool to Data Link Connector (DLC).
2.
Start engine and turn the headlight and the heatwire on.
3.

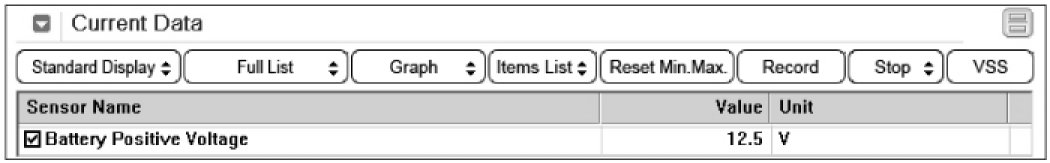

Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4.
Maintaining ENG. RPM at 2,500 RPM (idle) over 2 minutes.
Specification :Battery Voltage 5.
Is parameter within specifications?
